BEAST Driving Light Wiring Harness to suit Toyota Hilux 2020 Onwards

Utilise the full potential of your BEAST Driving Lights by Lightforce, with this dedicated Plug & Play Wiring Harness. This harness is specifically designed to make BEAST’s 3-mode operation compatible with some Toyota Hilux vehicles.

This harness kit comes complete with dedicated Headlight adaptor for simple integration into your vehicle’s headlight circuit. See the below compatibility table for the correct headlight adaptor for your model Hilux.

A very small (8mm in diameter) single moulded 8 pin connector and ignition wire is required to pass through the vehicle’s firewall, and connect directly to the BEAST 3-Mode Smart Switch. The smart switch illumination has been colour matched to the factory backlight colour, to ensure an OEM look and feel.

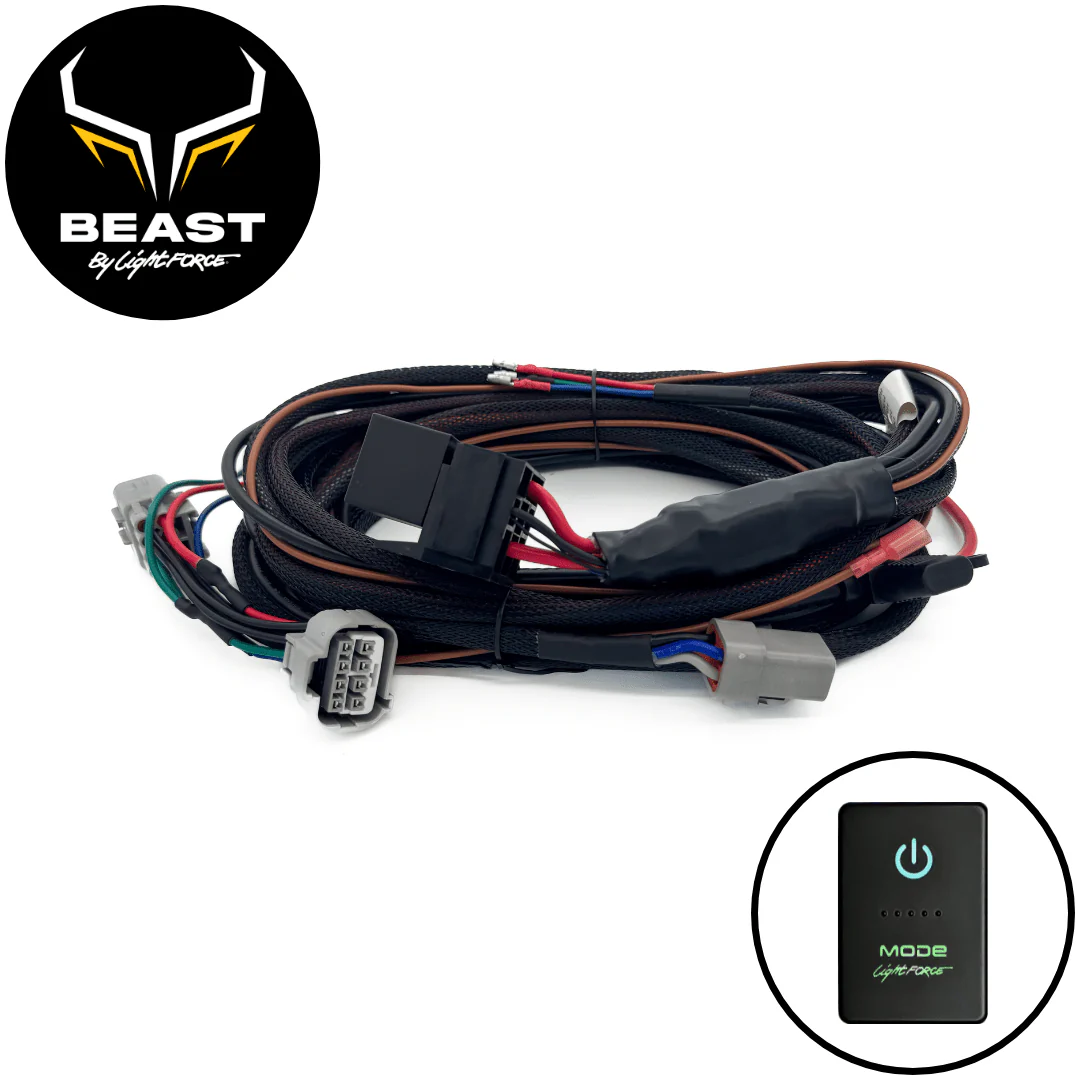

Kit contents

• 1x Beast driving light harness including relay.

• 1x 3-mode Smart Rocker Switch with Hilux adaptor

• 1x Dedicated Headlight Adaptor for Hilux

• 1x Ignition pickup for Hilux

• Cable ties and mounting hardware

• User instructions via QR code



Specifications

• 12V operation
• 40 Amp relay
• Positive or negative switching (controlled electronically)



Installation

Please refer to the user instructions here.

Compatibility Table

Make	Model	Year	Variant
Toyota	Hilux Facelift Model Bi-LED's (Bi-LED's Only)	2020 to Current	SR5, Rouge, Rugged X, GR Sport
